Feeding System Automatic Step Feeder Long Nail Metal Parts Pneumatic Feeder

1 . Descriptions:

Our step feeders offer significant benefits when it comes to feeding small cylindrical and spherical parts. They excel in quiet operation, space efficiency, and gentle handling. We provide a range of configurations, including standalone units and fully equipped feed systems.

The feeders employ a step mechanism to lift bulk parts from the integrated hopper bin. The step thickness is carefully chosen to lift a single row of parts. Once the step stroke reaches its peak, the parts descend onto a linear feeder, such as a vibratory inline, belt conveyor, or air track, for further orientation. In instances where parts are improperly oriented and ejected, they can be directed back into the bin using gravity slide, air track, or conveyor systems, accommodating more complex orientation requirements.

Key features encompass a vertical step configuration that minimizes footprint and resistance, straightforward air-powered operation facilitated by a single air cylinder, and an integrated stainless steel hopper bin designed for part storage. The absence of vibration in our step feeders results in decreased part abrasion and contributes to their quiet operation. These feeders handle parts delicately, lifting a single row from the bin and conducting final orientation on the linear feeder, thereby minimizing wear. This characteristic makes step feeders particularly suitable for fragile parts. Additionally, our step feeders exhibit exceptional durability, requiring minimal maintenance.

To sum up, our step feeders offer an efficient solution for feeding small cylindrical and spherical parts. They operate quietly, optimize space utilization, and ensure gentle handling throughout the feeding process.

2 . Specifications:

3 . The Best Parts to Feed Using a Step Feeder :

When selecting parts for a step feeder, important factors include the size, shape, and material of the parts. Step feeders are designed for round, cylindrical, or spherical parts like springs, tubes, washers, and nuts. It's crucial to ensure that the parts meet these specifications. Metals are well-suited for step feeding due to their low noise characteristics, but plastics or composites can also work if they are sufficiently rigid.

Considerations should also be given to the production volume and desired feed rate. Traditional step feeders have a single-lane linear track output, enabling efficient operation at a high speed. However, alternative part feeding systems may be better suited for applications that require continuous motion.

Step feeders are reliable and efficient for consistent part distribution in automated processes.

At BBF Feeders, we specialize in designing, engineering, and manufacturing various automated parts feeding systems, including step feeders. Our team is available to review your needs and provide recommendations on the most suitable feeder type for your specific requirements.

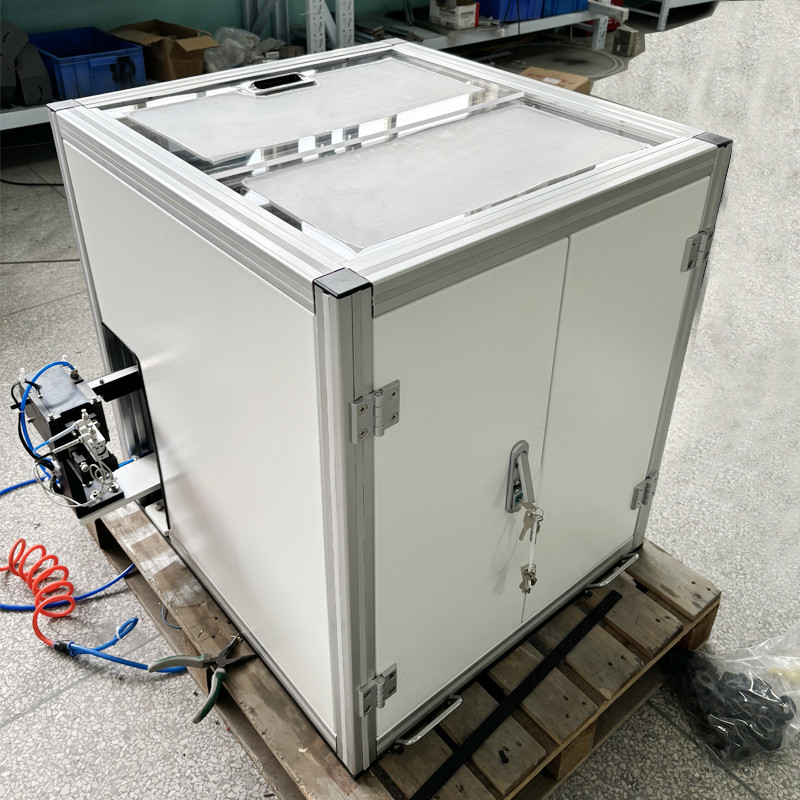

4 . More Pictures:

Suzhou Best Bowl Feeder Automation Euioment Co., Ltd. is a high-tech enterprise specializing in design,R&D, manufacturing, sales and service of vibratory bowl feeders and non-standard automation equipment. lt is located at the coast of Taihu Lake Suzhou City. The products mainly include vibratory bowl feeder, parts feeder, linear feeder, linear hopper, elevator hopper etc. Our products certified CE and now fully adopted the ISO9001 international quality management system. We adhere to the philosophy of "Best Products to Customers, Best Life to Employees, Best Reward to the Society", and has won customers' support at home and abroad. We have more than 10 R&D staff and reached the international leading level in R&D capability, technical skill, production capacity, quality etc. At present, our factory covers an area of more than 3,000 square meters. Equipped with professional automation workshops and teams, and 20 years of experience in automatic equipment feeding systems, we are able to provide you first-class non-standard automatic solutions.
